Pumps

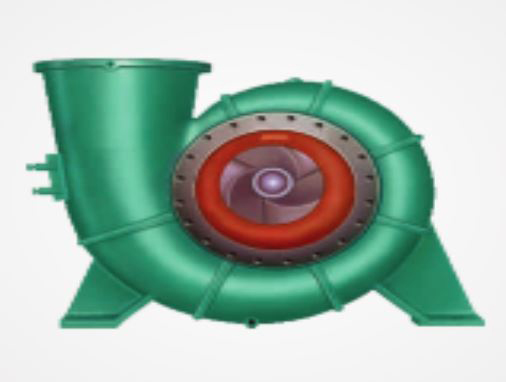

Non Clog Sewage Pumps (Expertise comes in all sizes)

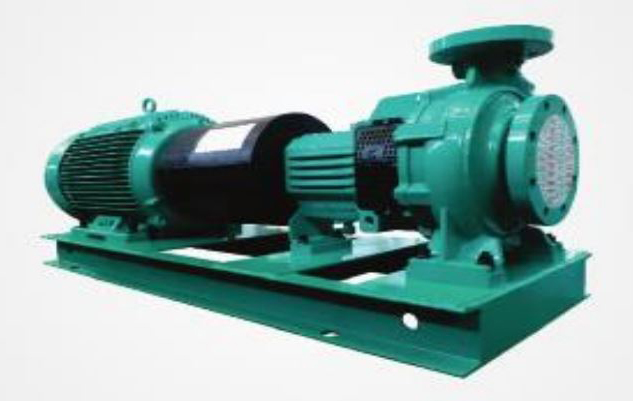

Prime Mover

MISO / PISO Pumps can be driven with :

Electric Motor :

Pump are supplied with motors confirming to IE1/E2/E3 standards/NEMA norms, IP 55 protection class, in TEFC/CACA/CACW designs & other customised design on request.

Diesel Motor :

With Radiator cooled/Heat exchanger cooled options as per the requirement.

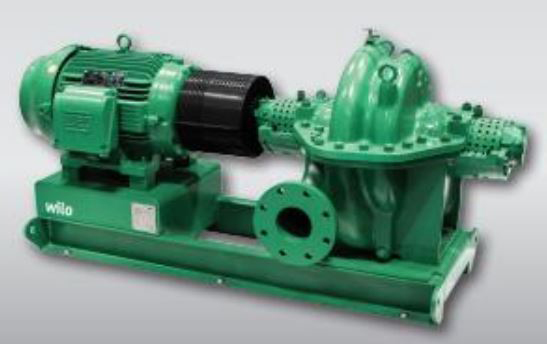

Wilo SCP

Horizontal Split case pumps.

Technical Specifications :

• Temp Range: 18°F to 250°F (-8°C to 120°C)
• Motor sizes up to 2.000 HP
• Max Flow : 15.000 USGPM
• Max Head : 750 feet

Wilo - Helix FIRST V

Design Type :

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections.

Application :

• Water distribution and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Fire extinguishing systems
• Washing systems
• Irrigation

Special features / product advantages :

• Efficiency-optimised, laser-welded, optimised 2D / 3D hydraulics
• Corrosion-resistant impellers, guide vanes and stage housings
• Flow and degassing - optimised hydraulic parts
• Reinforced pump housing, flow and NPSH optimised
• Space - saving and easy maintenance thanks to compact design
• Particularly sturdy coupling guard

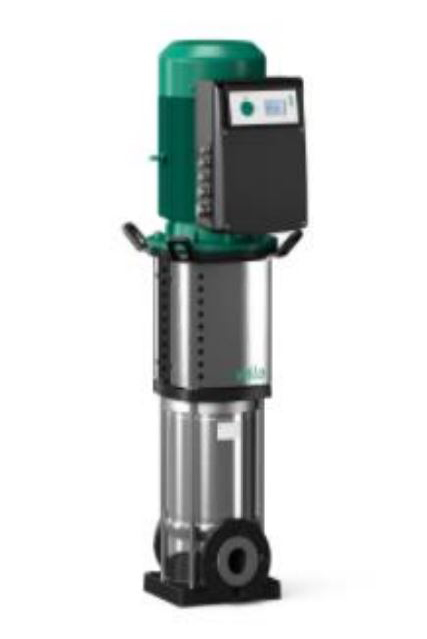

Wilo - Helix VE

Design Type :

Electronically controlled, non-self-priming high-pressure multistage centrifugal pump in vertical design, with in-line connections.

Application :

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Fire extinguishing systems
• Washing systems
• Irrigation

Special features / product advantages :

• Multistage, speed-configurable stainless steel high-efficiency pump with 2D/3D hydraulics and standard motor
• Optimised design for easy operation, transportation and installation with handles, lantern adjustment and rotatable free flanges
• User-friendly display with Green Button Technology and full text menu
• IF plug-in module for quick communication with the BMS
• Quick maintenance due to innovative cartridge mechanical seal and spacers
• Lower life cycle costs due to new Helix design

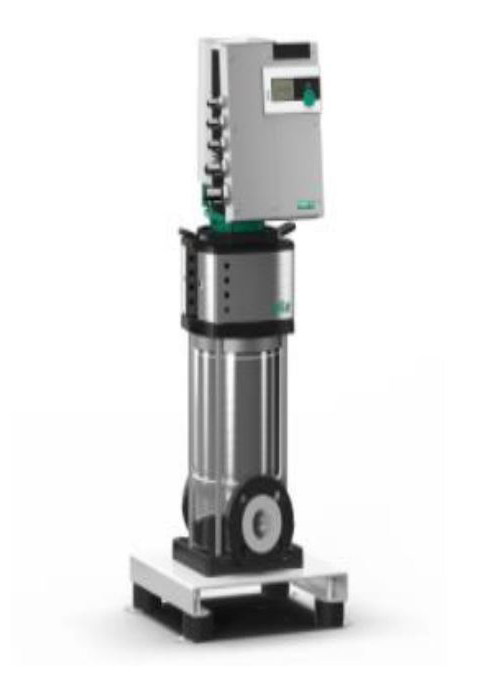

Wilo - Helix Excel

Design Type :

Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections.

Application :

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Washing systems
• Irrigation

Special features / product advantages :

• Highly efficient EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2
• Integrated electronic control "High-Efficiency Drive"
• Simple operation thanks to tried-and-tested Green Button Technology and a clearly arranged display
• User-friendly "X-Seal" cartridge mechanical seal and spacer coupling (from 5.5 kW) for fast and easy maintenance
• Flexible integration into building automation
• Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

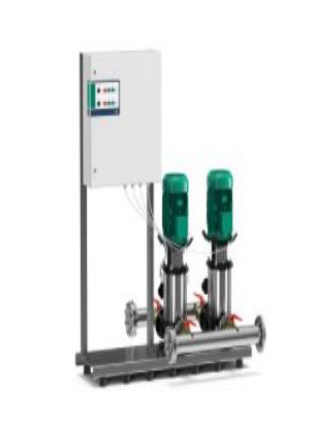

Wilo - FLA 2

Design Type :

Pressure boosting system for fire extinguishing systems with indirect connection in accordance with DIN 14462. With 2 vertical stainless steel high-pressure multistage centrifugal pumps in glanded version.

Application :

Fully automatic water supply for fire extinguishing systems with wall hydrants of the type "F" in domestic, commercial and public buildings, hotels, hospitals, shopping centres and also offices and industrial buildings.

Special features / product advantages :

• Sturdy system with 2 Helix FIRST V or MVI stainless steel high-pressure multistage centrifugal pumps, in accordance with DIN 1988 and DIN 14462
• Absolute operational reliability for 2 - pump systems with 100% redundancy
• Easy adjustment and operational reliability due to the FLA control unit
• Pre - set throttle valve on the pressure side of the pump to protect the pump at low volume flows

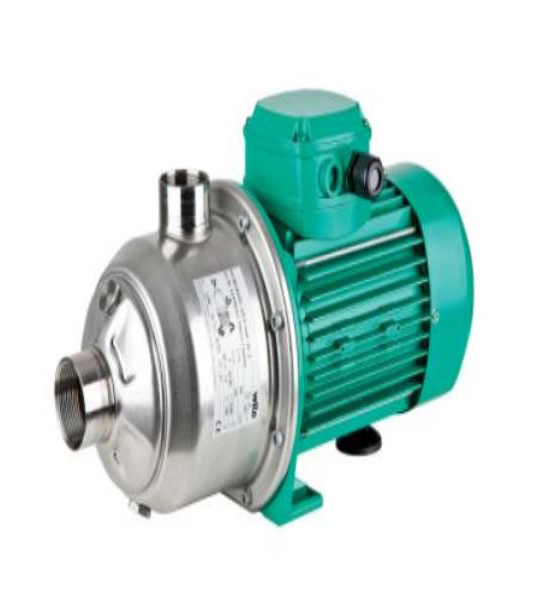

Wilo - ECONOMY MHI

Design Type :

Non-self-priming multistage pump.

Application :

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Washing system
• Irrigation
• Water treatment

Special features / product advantages :

• IE3 IEC three-phase AC motor (>0.75 kW)
• All parts that come in contact with the fluid are made of stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L)
• Space-saving, compact design
• Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

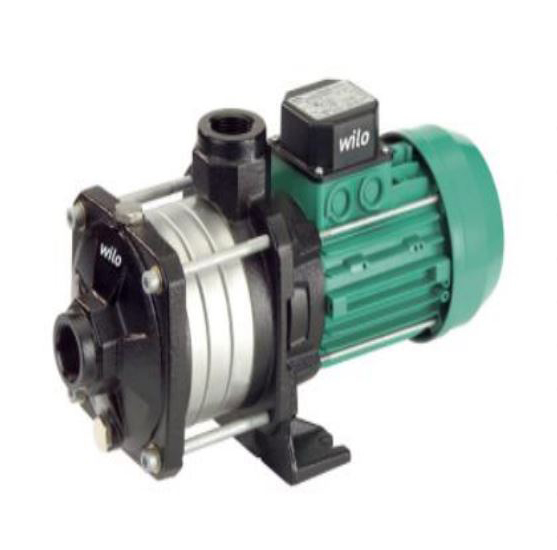

Wilo - ECONOMY MHIL

Design Type :

Non-self-priming multistage pump.

Application :

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Closed cooling circuits
• Washing systems
• Irrigation
• Water treatment

Special features / product advantages :

• IE3 IEC three-phase AC motor (2 0.75 kW)
• Impellers and stage housing made of stainless steel
• Pump housing made of EN-GJL-250 cast iron, KTL coating
• Single-phase and three-phase versions available

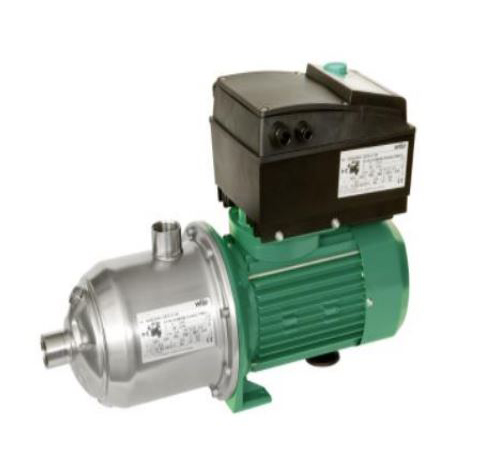

Wilo - ECONOMY MHIE

Design Type :

Non-self-priming multistage pump with integrated frequency converter.

Application :

• Water supply and pressure boosting
• Irrigation
• Heating
• In industrial systems: Cooling and washing system

Special features / product advantages :

• Easy operation and compact design
• All parts in contact with fluid are made of stainless steel
• IEC three-phase motor (level 1E2) with integrated frequency converter (frequency converter for 3-motors have optional interfaces for bus communication using plug-in IF-Modules) Full motor protection
• Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

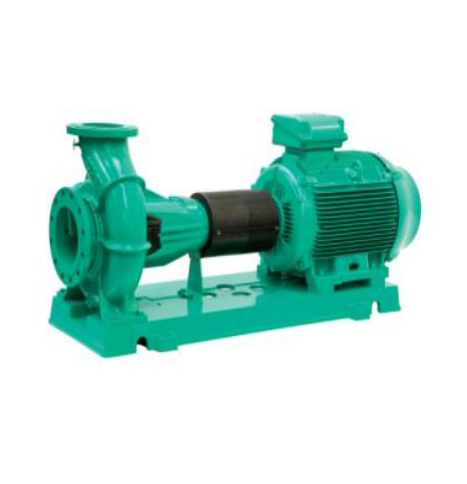

Wilo - ChonoNorm - NLG

Design Type :

Single - stage, low - pressure centrifugal pump with axial suction, mounted on a baseplate.

Application :

• Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
• Applications for irrigation, building services, general industry, power stations, etc.

Special features / product advantages :

• Reduced life cycle costs thanks to optimized efficiency
• Bidirectional, force-flushed mechanical seal
• Interchangeable casing wear rings
• Permanently lubricated, generously dimensioned roller bearings
• Low NPSH, best cavitation properties

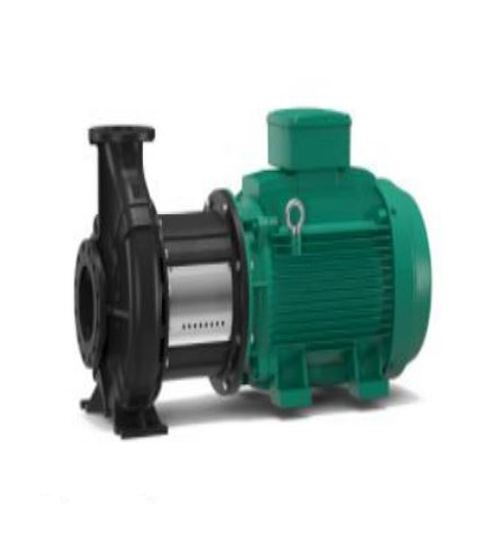

Wilo - ChonoBloc - BL

Design Type :

Glanded pump in block design with flange connection.

Application :

For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and cold water without abrasive substances in heating, cold water and cooling water systems.

Special features / product advantages :

• Energy-efficient due to state-of-the-art pump hydraulics and the use of IE3 motors
• Cataphoretic coating of all cast iron components ensures high resistance to corrosion and long service life
• Universal use in diverse applications thanks to different impeller materials, several motor options as well as different mechanical seals
• Easy installation due to standard pump support feet and optional supporting blocks
• Easy maintenance and user-friendly design with optional "back pull-out" design and cartridge mechanical seal for large pump types

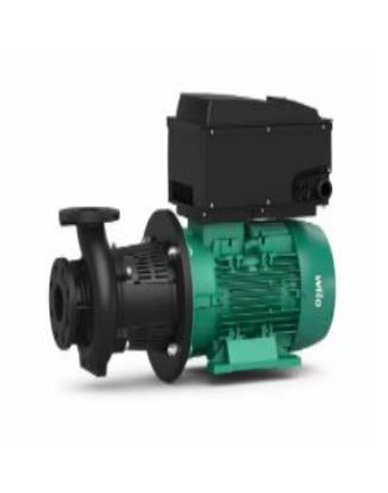

Wilo - ChonoBloc - BL - E

Design Type :

Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.

Application :

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features / product advantages :

• Energy savings due to integrated electronic power adjustment
• Optional interfaces for bus communication using plug-in IF-Modules
• Simple operation due to tried-and-tested Green Button Technology and display
• Integrated full motor protection (PTC thermistor sensor) with trip electronics
• Meets user requirements thanks to performance and main dimensions in accordance with EN 733 (for standard pumps)

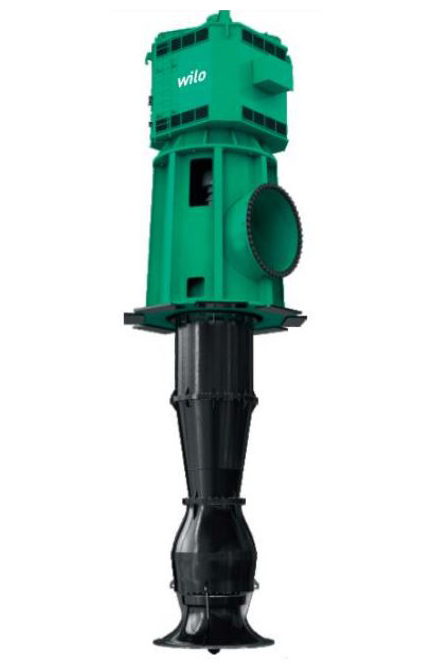

Vertical Turbine Pumps

Material Of Construction :

¹RM Pipes : Rising Main Pipe

¹DBMS : Delivery Bend cum Motor Stool
